Non-contact Diameter Measurement

All Proton Products Diameter Gauges

  • Provide high-speed, non-contact, optical diameter measurement.
  • Are housed in rugged enclosures to survive harsh industrial environments.
  • Are available with industry-standard communications interfaces fitted either as standard or as an option.
  • Are available in different diameter and speed ranges to suit applications and budgets as required.
DG2015-k whitebg

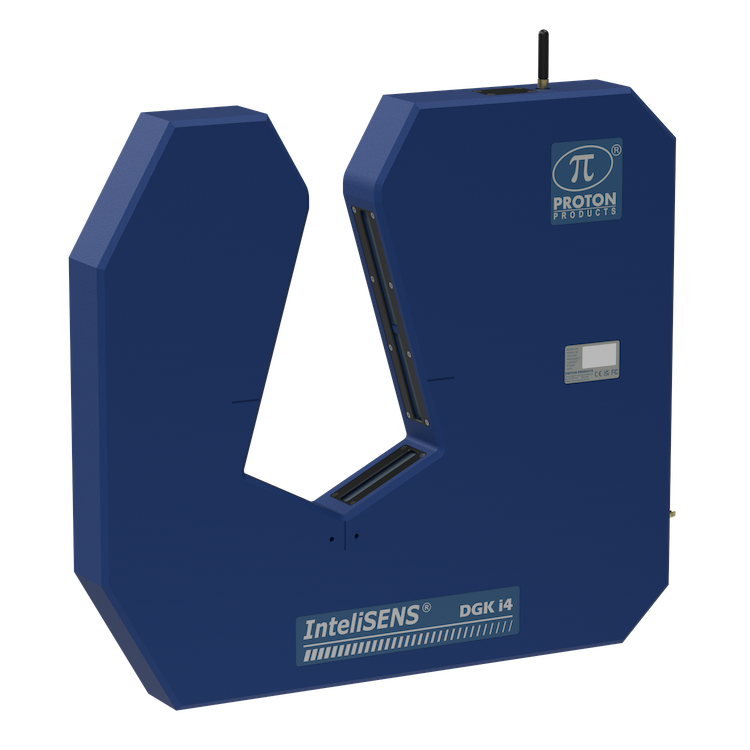

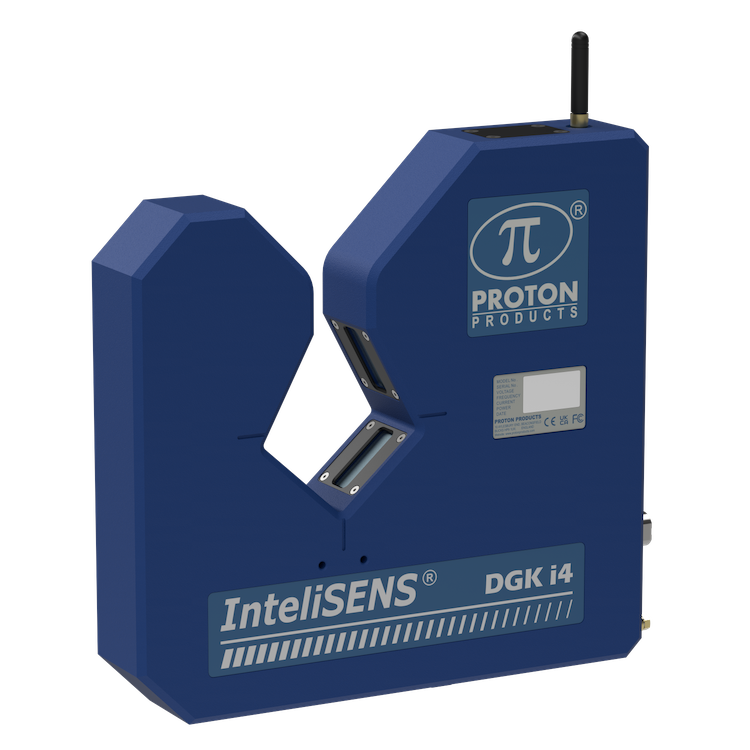

InteliSENS® DG-k Series High Speed Diameter Gauge

Advanced, solid state LED and CCD diameter measurement for high speed applications.
  • 15, 30, 60 and 200mm diameter models available.
  • 2 and 3-axis models available.
  • 5 and 12.5kHz scan rate models available.
  • Solid-state design for maximum reliability and MTBF.
  • Non-laser light source.
  • Optional integrated PI feedback controller for driving insulation extruders or capstan drives.
  • Optional Single Measurement Flaw Detection (SMFD) for detection of lump and neck flaws at intermediate line speeds (< 500m/min).
  • Production line control and flaw detection integrated in a single package.
  • Wire and cable insulation extrusion lines.
  • Pipe, hose and tubing extrusion lines.
DG Series

InteliSENS® DG Series Diameter Gauge

Classic, scanning-laser diameter measurement with a proven application track-record.
  • 30, 60 and 130mm diameter models available.
  • 1 and 2-axis models available.
  • 600Hz scan rate per axis.
  • Integrates seamlessly with Proton Products CS range of Production Line Control systems for control of extruders and capstan drives in wire insulation production lines.
  • Wire and cable insulation extrusion lines.
  • Pipe, hose and tubing extrusion lines.
BG Series

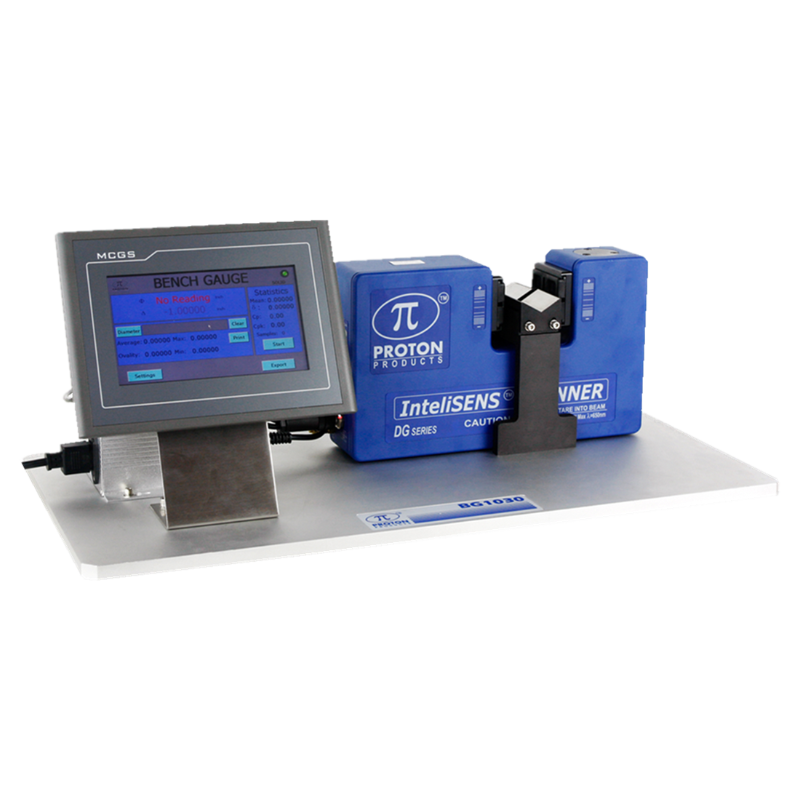

InteliSENS® BG Series Bench Gauge

Scanning-laser bench gauge for off-line diameter measurement applications.
  • 30, 60 and 100mm diameter models available.
  • 1 and 2-axis models available.
  • Fast, non-contact replacement for vernier calipers and micrometer screw gauges.
  • Readily interfaces to PCs via RS-232 for data logging and report production.
  • Available with optional V-blocks or rotary chucks for sample holding.
  • Incoming inspection, quality assurance and laboratory use.
